| DESCRIPTION: |
|
Globe valves are regulating valves. They are used to regulate the flow velocity, pressure, volume etc., to control process requirements such as mixing, cleaning etc. These type will influence large pressure drops and selectively used in pipe line. |
|
|
| APPLICATIONS: |
|
- Refineries & Petro-Chemical Industries
- Power Plants
- Process & General Industries
- For Water, Steam, Gas, Oil & Other Non-Aggressive Media.
|
|
|
| DESIGN STANDARD: |
|
General Design
Testing
Face to Face
Pressure & Temperature Rating
(Standard class) |
: BS 1873
: API 598
: ASME B 16.10
: ASME B 16.34 |
|
|
 |
|
|
| PRODUCTS RANGE: |
|
Size
Type
Rating |
: DN50 - DN300
: Bolted Bonnet, OS & Y,Narrow seat type Disc Class
: Class 150,Class 300 & Class 600 |
|
|
| SALIENT FEATURES: |
|
- Valves meet BS 1873 design requirement
- Narrow type, Self-aligning & Rotating disc ensures tight shut-off. Streamlined flow ensure no pressure drop
- Graphite packing ring,top & bottom rings are braided grafhite.It ensures effective stem sealing
- Hardened seats minimize on line erosion & provide maximum service life
- Variety of materials available to suit special application requirement.
|
|
|
|
 |
|

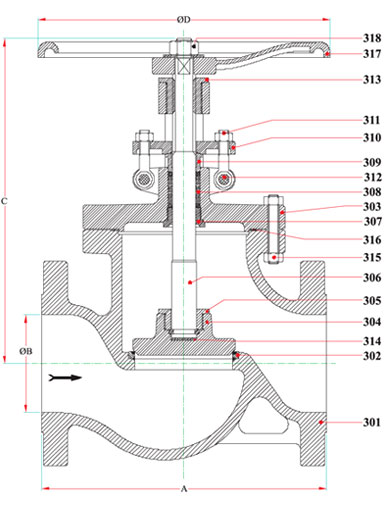

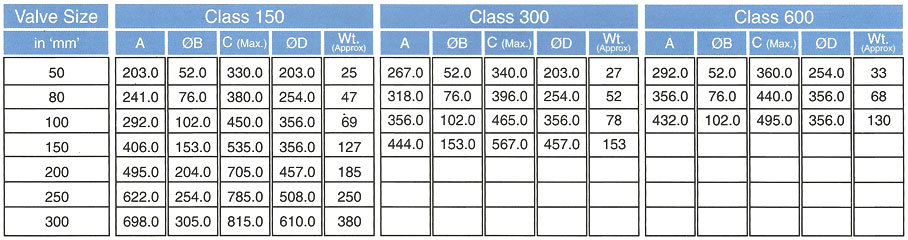

Dimensions (in mm, unless specfied) & Weights (in kg)
Note : Subject to change without notice on account of continuous improvement. |
|
|
|
|
