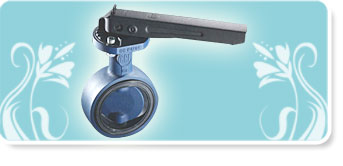

DESCRIPTION: |
|
Butterfly valves offer reliable performance in all type of water - hot & cold, treated and untreated and such tasks as ON-OFF and Throttling control, flow balancing and direction. |
|
|
APPLICATION: |
Process in Chemical Industry
Pharmaceutical Industry
Power plant Industry Distillery Industry
Paper Industry
Sugar Industry
Water treatment Plants
Construction Industry. |
|
 |
|
|
FEATURES: |
- No pins are used for the shaft with disc connection; this eliminates the possibility of electrolytic corrosion
- Self lubricated Plain bearingsfor both drive and non-drive end shaft ensures minimum bearing friction torque
- Choice of seat and disc material to suit media conditions and service requirements
- Adaptability to fit between companion flanges for all popular flange standards for the wafer style body. User Friendly
- Excellent adaptability for actuated operation through standardized top flange mounting dimensions for actuator fitment.
|
|
|
CONFORMITY TO CODES AND STANDARDS: |
- General design and manufacture *EN 593 / API 609
- Valve face to face dimensions *ISO 5752
- Top flange drilling *ISO 5211
- Valve Inspection and testing *API 598
- Flange standard conformity *ANSI 150 / ANSI 125 / BS 10 TAB
*D & E IS 6392 NP 0.6 / 1.0 / 1.6
|
|
|
SPECIFICATIONS: |
- Type of valve *Centric Disc Butterfly valve with rubber Lined Body
- Body type *Single Piece ,Short wafer or wafer lugged
- Seal type *Integrally bonded, replaceable
- Size Range *DN 50 to DN 600
- Pressure Rating *PN 10 / PN 600
- Operating Temperature Range *-30^C to 130^C (Depending on MOC)
- Seal leakage performance *Tight Shut off
- Operation *Hand lever operation - DN 50 - DN 300
*Worm Gear operation - DN 50 - DN 600
Electrical / Pneumatic actuator operation - optional
|
|
|

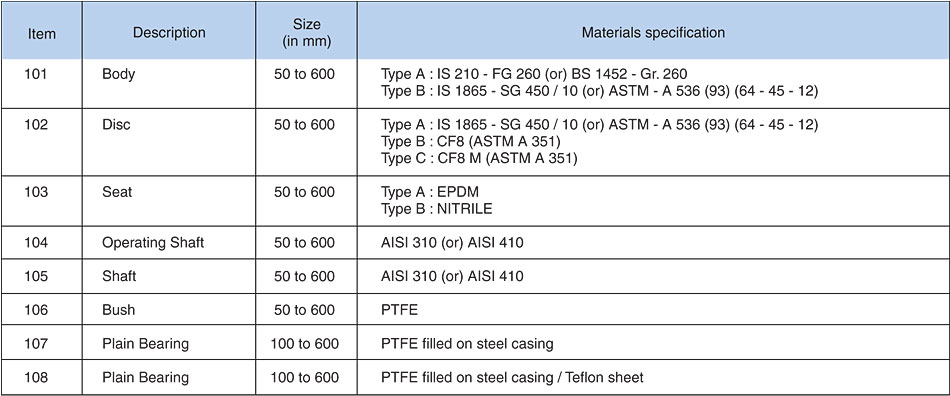

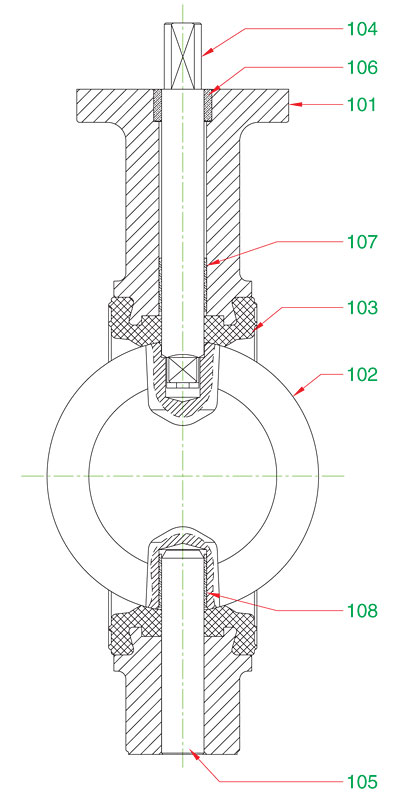

MATERIAL OF CONSTRUCTION (MOC): |
- Body *C.I/SG Iron/CF8
- Disc *S.G Iron CF8,CF8 M
- Seal *EPDM / NITRILE
- Shaft *AISI 410
|
|
|

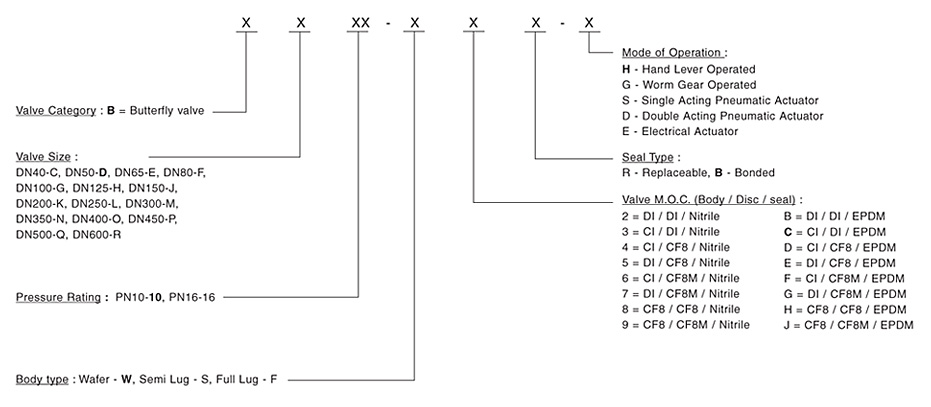

MODEL IDENTIFICATION CODE: |
|
 |
|

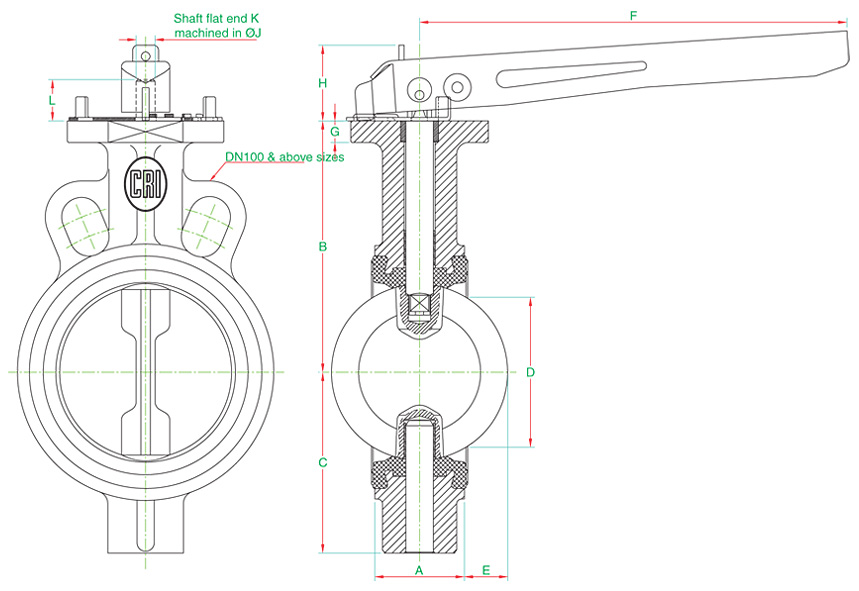

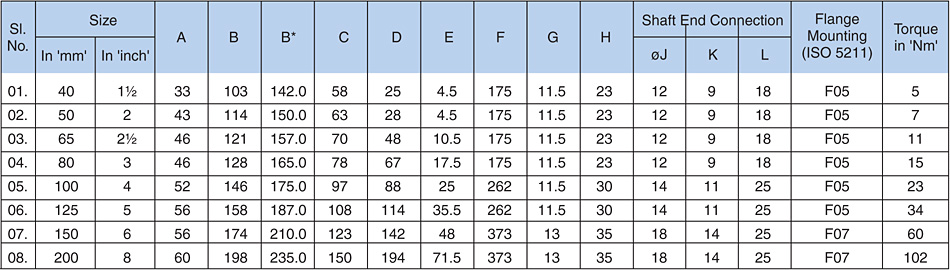

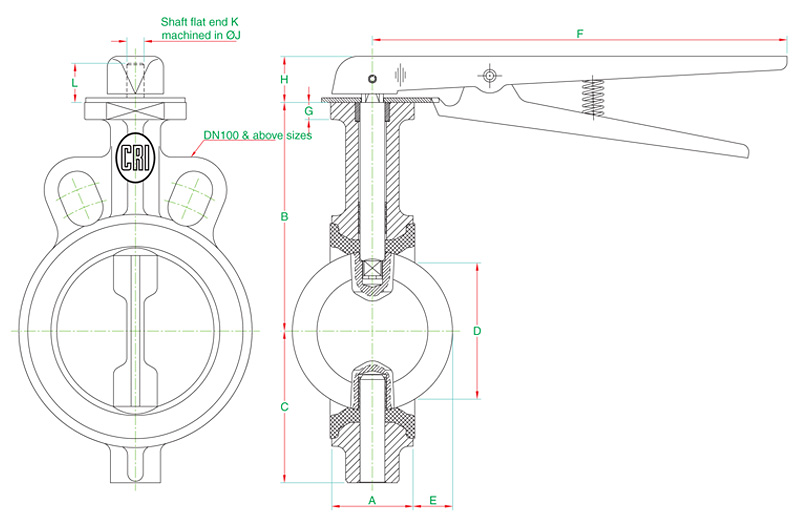

Butterfly Valve PN10 with Pressed Steel Hand Lever Details (in 'mm') |
|
 |
|
B* - Extended Stem Butterfly Valve dimensions. |
|
 |
|

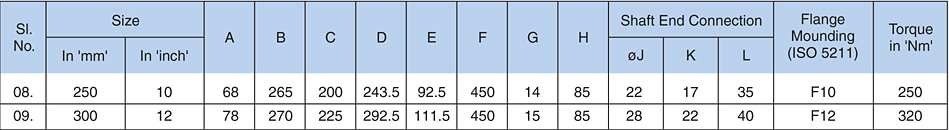

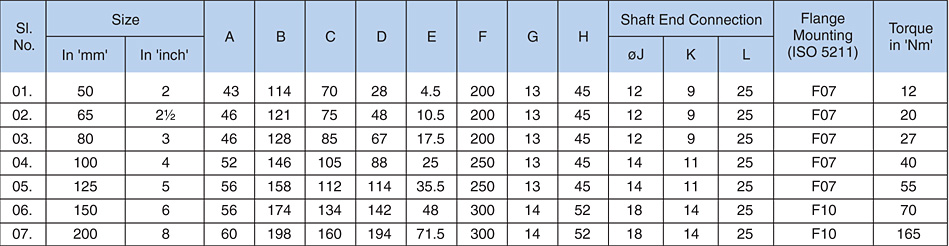

Butterfly Valve PN16 with Pressed Steel Hand Lever Details (in 'mm') |
|
 |
|
Butterfly Valve PN16 with Cast Hand Lever Details(in'mm') |
|
 |
|
 |
|

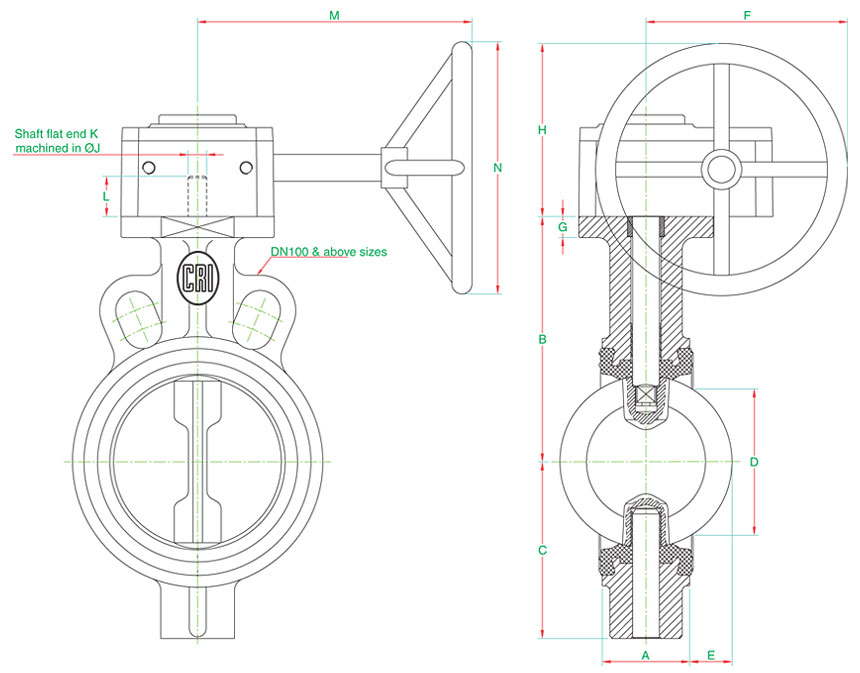

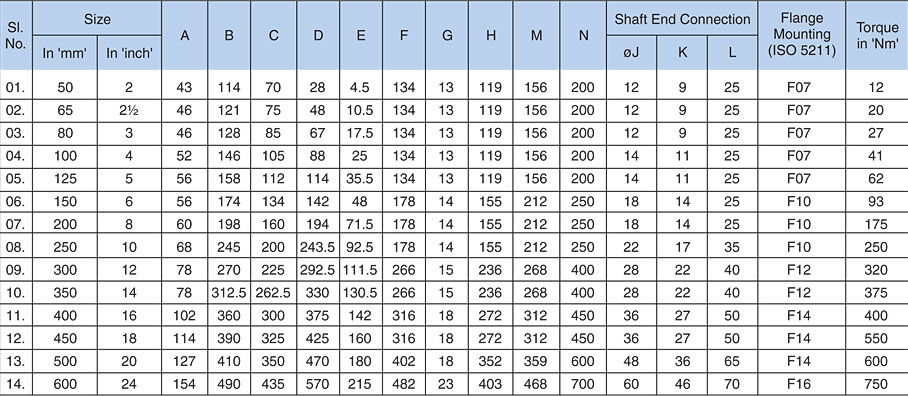

Butterfly Valve PN16 with Worm Gear Details (in 'mm') |
|
 |
|
 |
|
 |
|
 |
|
