| DESIGN STANDARD: |
|
General Design
Testing
Face to Face
Pressure & Temperature Rating
Flange Standard Conformity |
: API 594
: API 598
: ASME B 16.10
: ASME B 16.34 (Standard Class)
: ASME B 16.5 |
|
|
 |
|
|
| PRODUCTS RANGE: |
|
Size
Type
Rating |
: DN50 to DN300
: Swing Check
: Class 150,Class 300 & Class 600 |
|
|
| SALIENT FEATURES: |
|
- Valves meet API 594 requirement
- Self aligning free floating disc ensures perfect sealing
- Body full bore to ensures streamlined flow hence no pressure drop
- Hardened seats minimizes on line erosion & provide maximum service life
- Variety of materials available to suit special application requirement.
|
|
|
|
 |
|

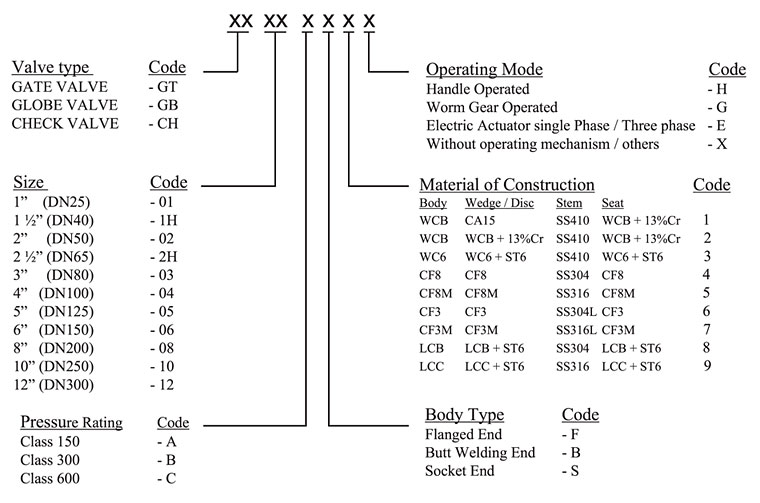

| VALVE MODEL IDENTIFICATION CODE: |
|
 |
|

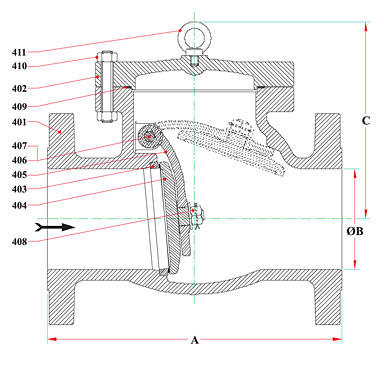

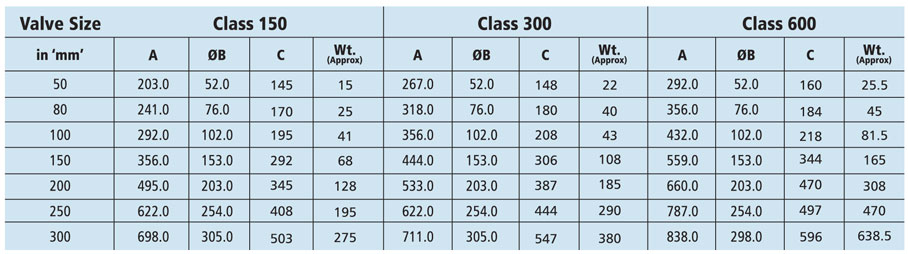

Dimensions (in mm, unless specfied) & Weights (in kg)
Note : Subject to change without notice on account of continuous improvement. |
|
