| DESCRIPTION: |
|
Ball valves are quarter turn type ON-OFF valves predominantly soft seated suitable for clean fluids and hygiene services mostly at low temperature operations. Has very low pressure drop and handle high volume of fluids. Size range dominated from ½” to 12” and pressure class range 150 & 300. Other sizes, higher pressure class and metal seats also prevail, as specials. |
|
|
PRODUCT RANGE:
SIZE: DN25mm-DN150mm
PRESSURE RATING: #150
APPLICATIONS:
REFINERIES | PETRO - CHEMICAL | FERTILIZERS
THERMAL POWER STATIONS | PROCESS INDUSTRIES
|
|
 |
|
|
|
|
SALIENT FEATURES:
- All ball Valves are provided with built-in, antistatic design features.
- Ball Valves are designed to offer wide variety of seat and seal material combinations to suit specific needs of customers.
- All Ball Valves have a bottom entry stem design to provide blow-out proof integrity.
- Supplied with hand levers Ball Valves are suitable for automation using either electric or pneumatic actuators

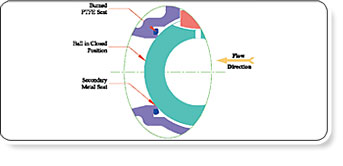

- Fire-safe design valves feature a secondary metal-to-metal seat which renders the valve fire-safe.
|
|
|
|
 |
|

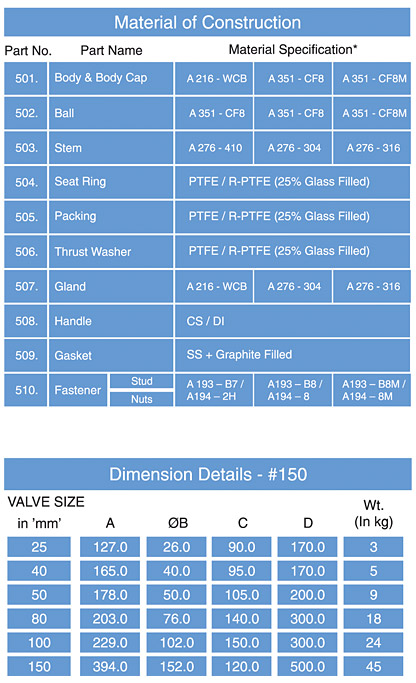

| TECHNICAL DATA |
|

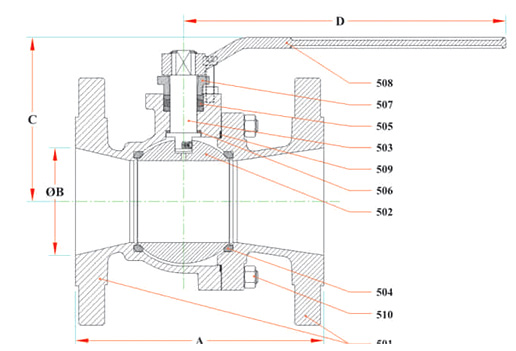

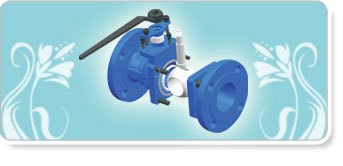

Type: Two Piece,Flanged End & Floating Ball
Nominal Size: DN25,DN40,DN50,DN80,DN100,DN150
Pressure Class: #150 |
|
| VALVE STANDARDS |
|
General Design:API 608
Face to Face: ASME B 16.10
Pressure & Temperature Rating : ASME B 16.34 (Standard Class)
Flange Standard Conformity: ASME B 16.5
Testing Standard: API 598. |
|
|
|
|
 |
|
|
 |
|
|
|
|
