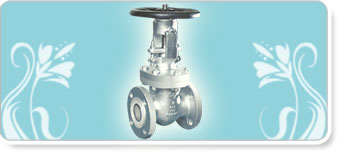

GATE VALVE
DESCRIPTION:

Gate valves are multi turn ON-OFF valves with metal seat. Has high population in process industry. Suitable for any type of fluid, any temperature range.

APPLICATIONS:
  • Refineries & Petro-Chemical Industries
  • Power Plants
  • Process & General Industries
  • For Water, Steam, Gas, Oil & Other Non-Aggressive Media.
DESIGN STANDARD:
General Design
Testing
Face to Face
Pressure & Temperature Rating

Flange Standard Conformity
: API 600
: API 598
: ASME B 16.10
: ASME B 16.34 (Standard Class)
: ASME B 16.5



PRODUCTS RANGE:
Size
Type
Rating
: DN50 - DN300
: Bolted Bonnet,OS & Y,Flexible Wedge
: Class 150,Class 300 & Class 600



SALIENT FEATURES:
  • Valves meet API 600 design requirements
  • Body full bore to API 600 ensures streamlined flow hence no pressure drop
  • Body guided wedge ensures positive seating and eliminates side thrust.& Flexible wedge ensure tight shut-off
  • Graphite packing ring,top & bottom rings are braided graphite.It ensures effective stem sealing
  • Hardened seats minimize on line erosion & provide maximum service life
  • Variety of materials available to suit special application requirement.

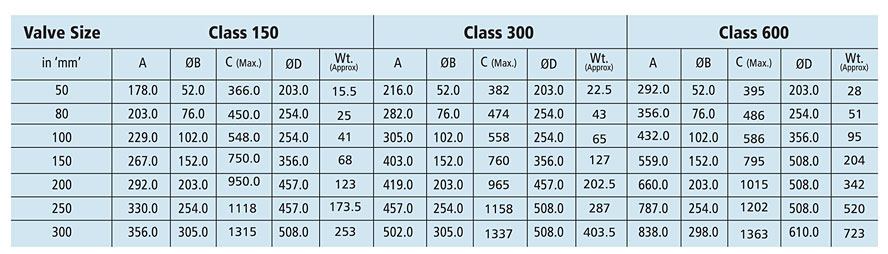

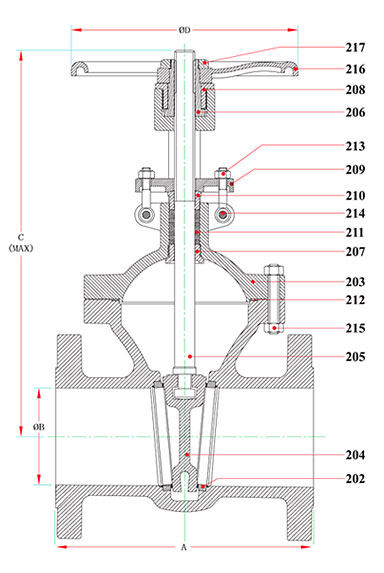

         Dimensions (in mm, unless specfied) & Weights (in kg)
         Note : Subject to change without notice on account of continuous improvement.
